RAMS simulation
system : NemoSIM4M

sub06_title
NemoSIM4M simulates the overall situation of weapon system operation/maintenance/supply
and evaluates the RAM performance and lifecycle costs.

Introduction Video

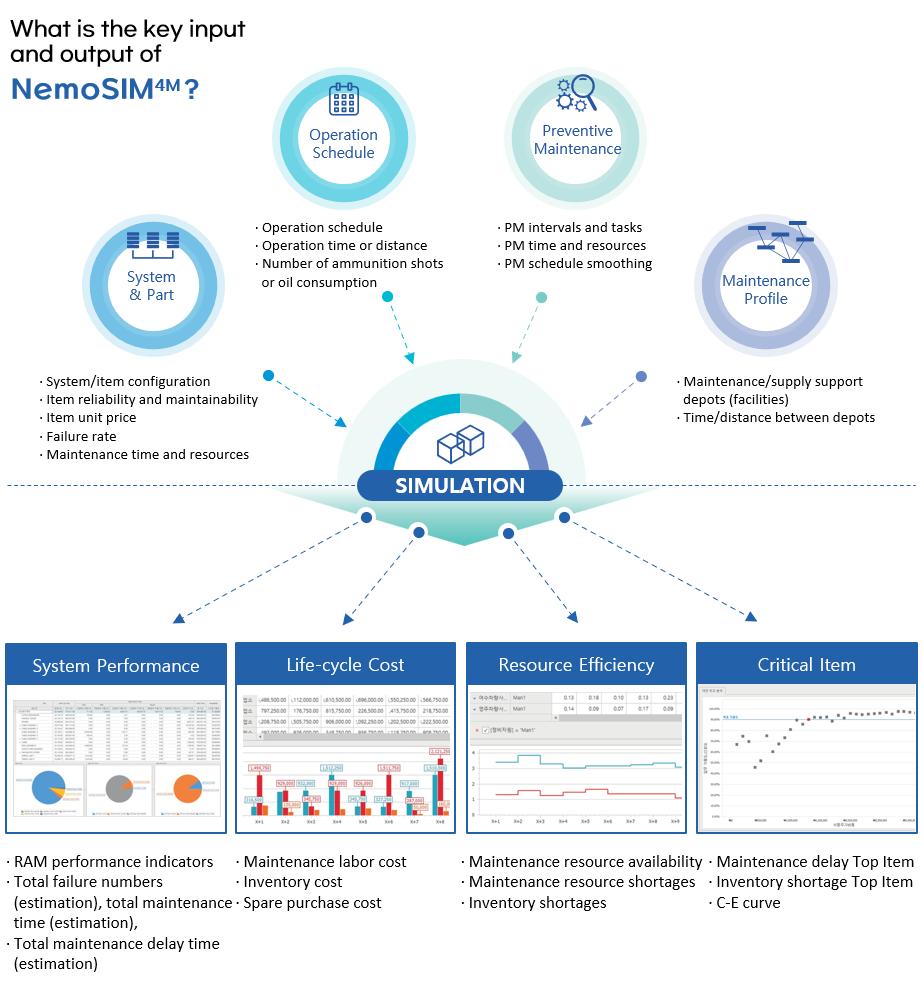

Main Input/Output

4M 주요 입/출력

Main Screen

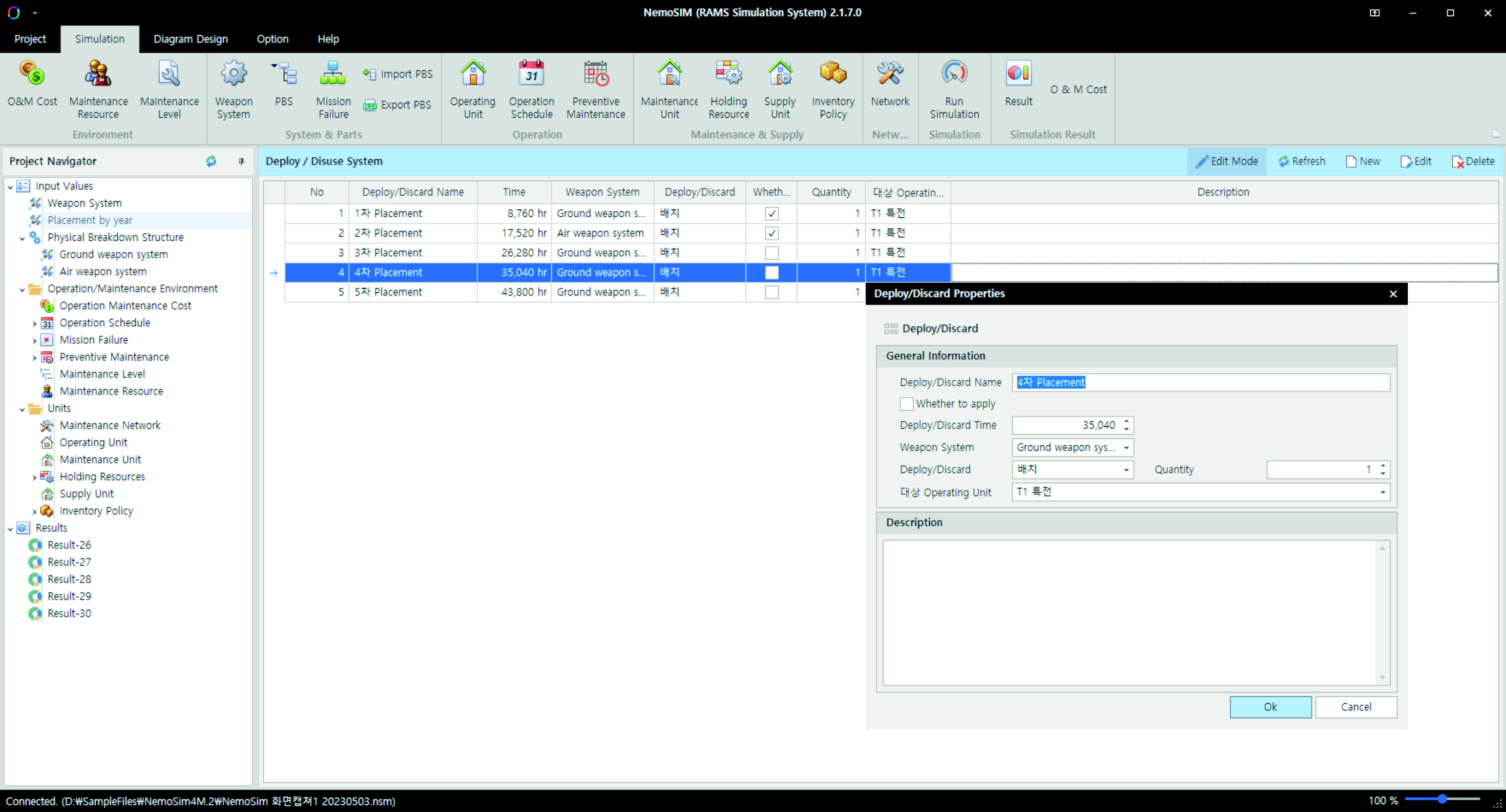

무기체계 연차별 배치
Weapon System Deployment by Year
  • The deployment schedule of the weapon system by year

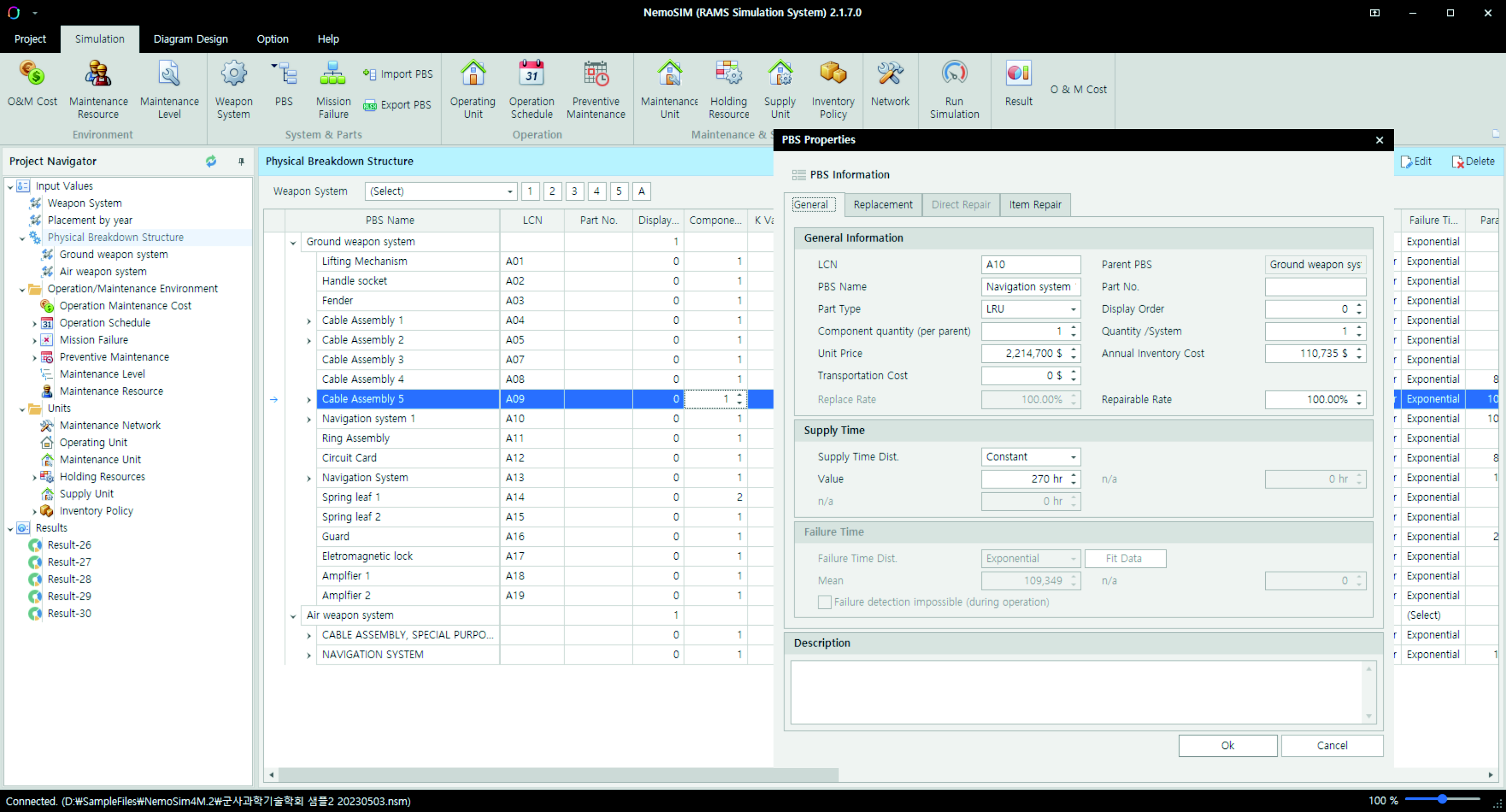

PBS
PBS (Product Breakdown Structure)
  • System and the sub-item structure in hierarchy tree
  • The related failure and maintenance details

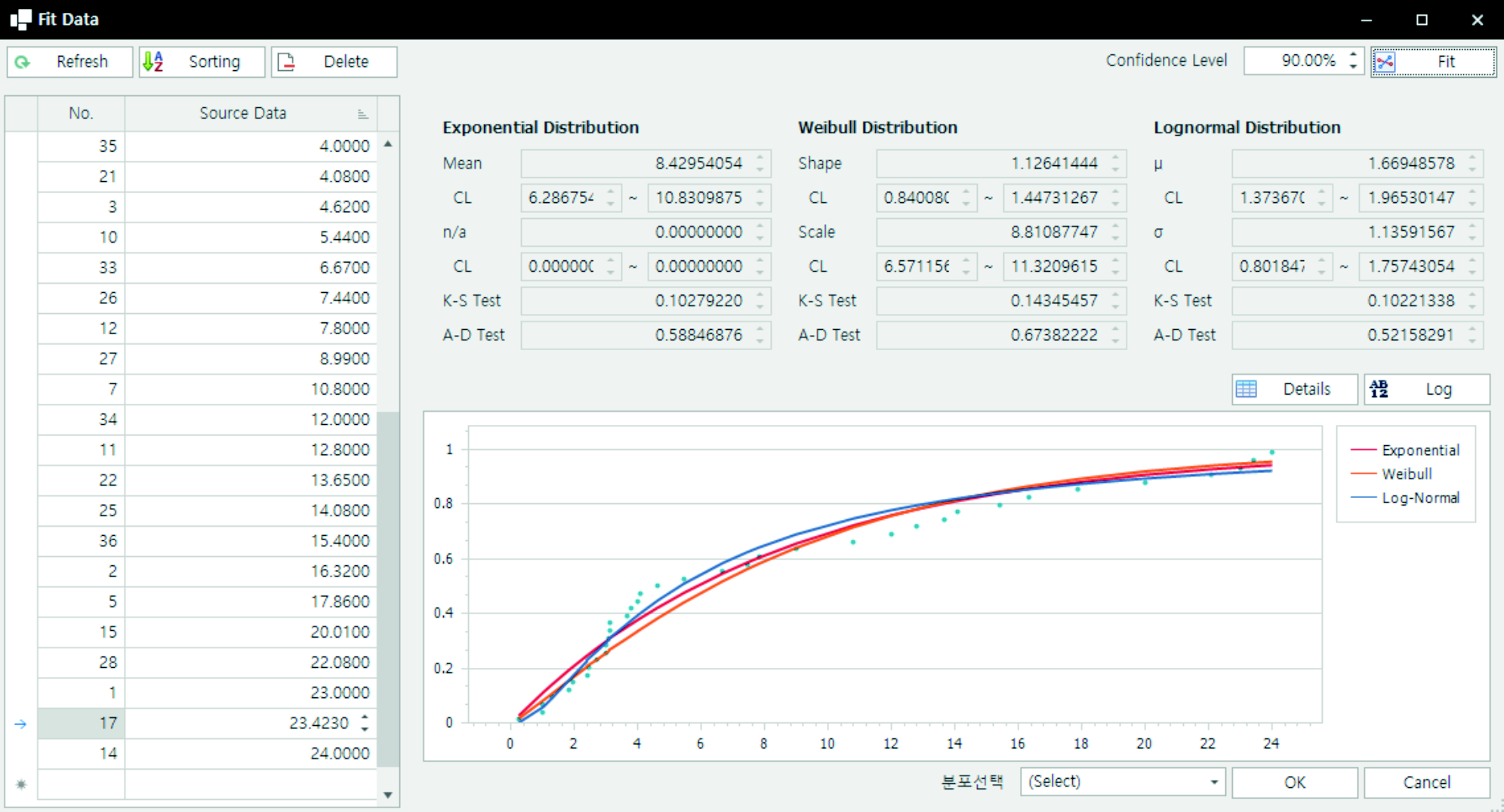

고장발생 분포 추정
Failure Distribution Fitting
  • The distribution parameters of the time between failures
  • The goodness-of-fit test results for each distribution (exponential, Weibull, Log-Normal distributions)

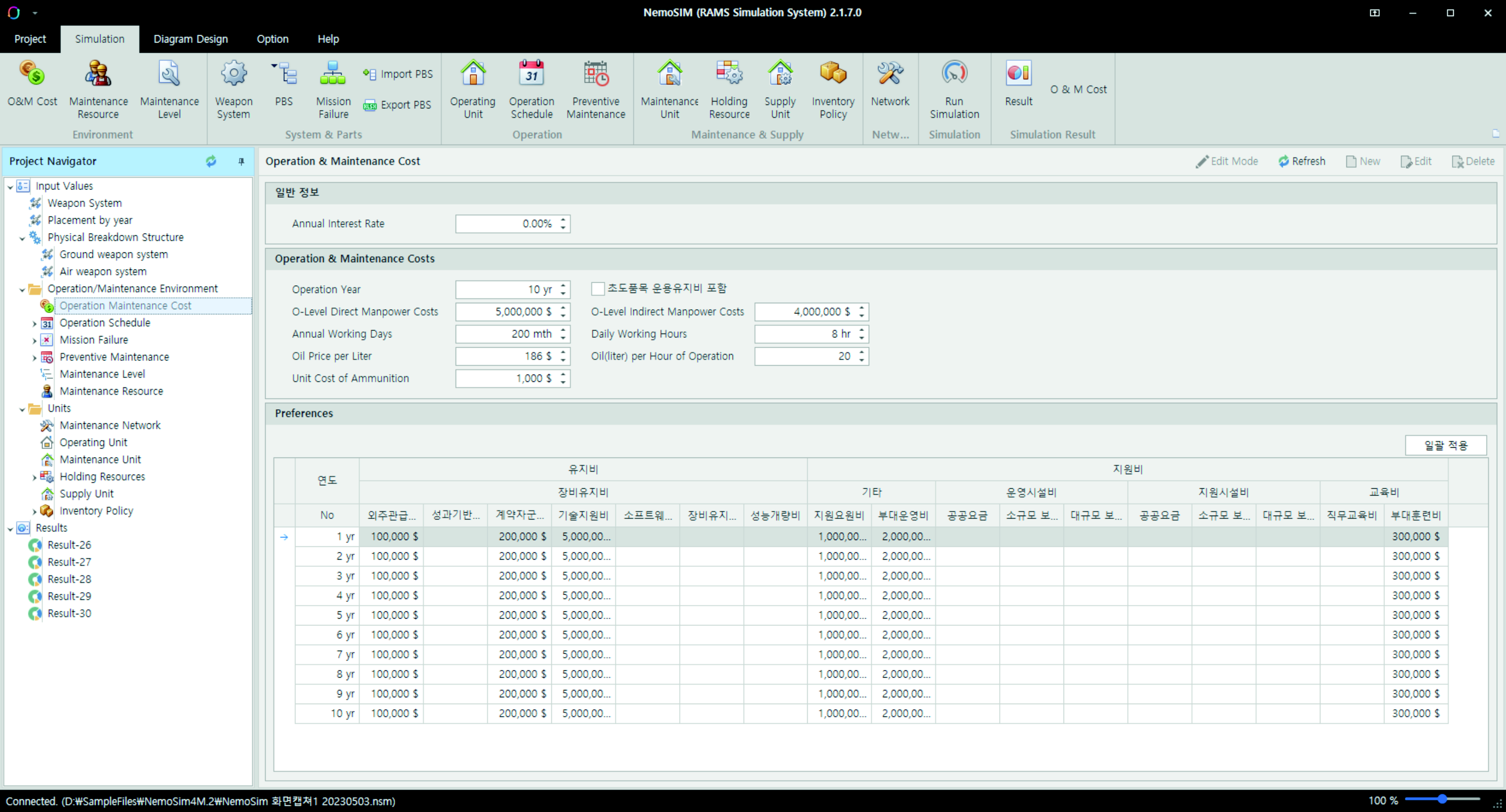

운영유지비
Maintenance Cost
  • Annual costs that are fixedly incurred regardless of the system operation within CBS (Cost Breakdown Structure) based on the Korea National Defense Authorization Act
